Steep Slope Conveyor Belt

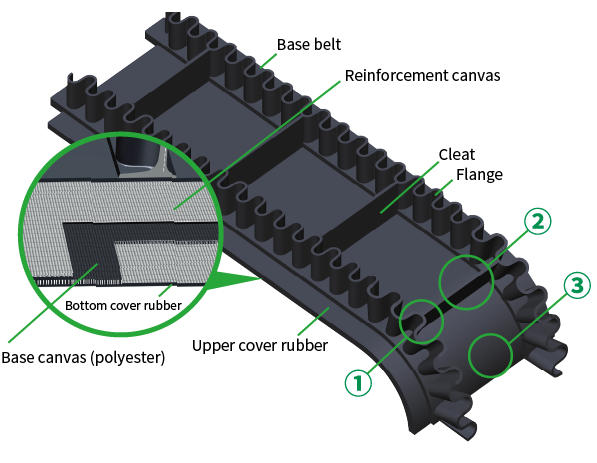

Original belt structure with durability
This belt strong against abrasion, shock, oil, weather and heat, stands any severe conveyance.
Its original structure gives enough bending fatigue against longitudinal direction and stiffness against width direction.
  • Feature

    ① The choice of cleats in accordance with an angle of inclination is available.

    T-type & K-type are as standard types and TC-type & KC-type are as Special types. Select T-type for the angle of inclination less than 45°and K-type for more than 45°(Contact us for details) ※ Flange is reinforced with reinforcement canvas in case its height should be more than 90mm

    ② No skirt board for spillage of material carried is required

    S-shape flange and belt itself are integrated, and no skirt board seen on the conventional belts is required.
    Therefore, any partial abrasion by the skirt board on the belt can be avoided.

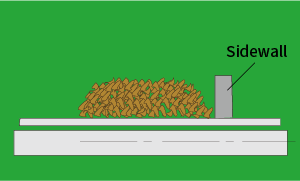

    S conveyor

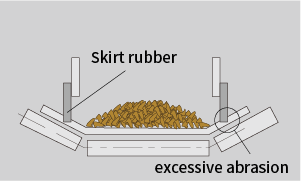

    Conventional conveyor belt
  • Supply records

    Steel works, Power generation equipment, Paper Company, Environmental recycling equipment, Batcher plant, Quarry, RDF・RPF/production equipment, Foundry

    Conveyor for wood chip
    Inclined angle 65°
    Lift 13.1m
    Horizontal 12.5m
    Transporting volume 70.2t/h
    Specific Gravity 0.35t/㎥
    Material wood chip
    Belt speed 82m/min
    Conveyor for waste plastick
